Hot Box Nozzles
Precision Thermal Control for Catheter Processing

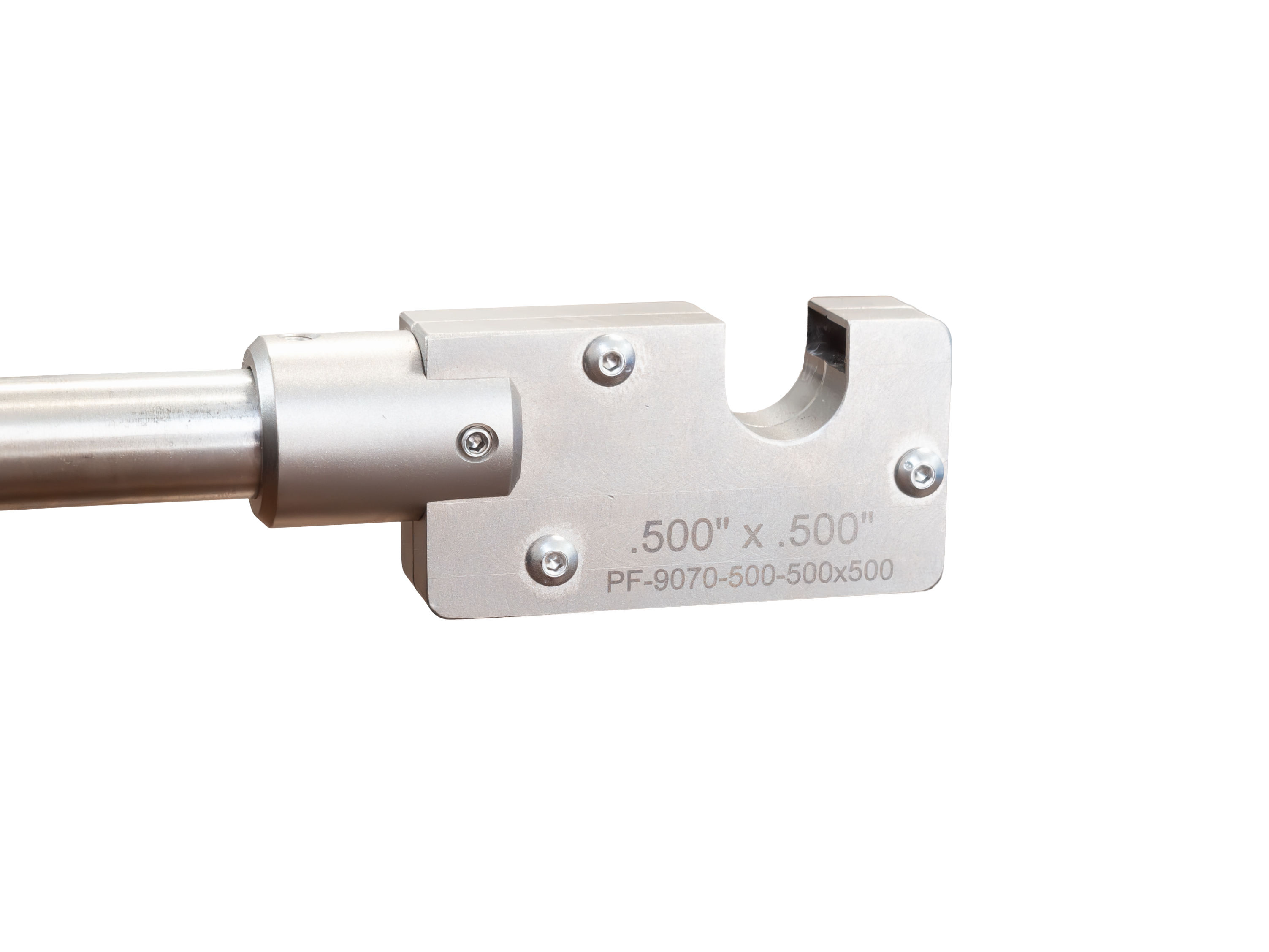

Precision Fixtures offers 31 standard replacement Hot Box nozzle sizes with a 0.500 in inlet. These Hot Box nozzles are compatible with many legacy Hot Boxes as well as the PF-9070 Hot Box, giving R&D and production teams a fast source for replacement nozzles and additional sizes for new processes. Standard and custom nozzle options are available. If you do not see the size you need, contact Precision Fixtures for a custom nozzle RFQ.
Designed with a standard 0.500 inch inlet, each nozzle allows precise control of the heating zone to support a wide range of catheter, tubing, and component processing applications. In addition to powering the PF-9070, these replacement Hot Box nozzles are compatible with many legacy Hot Boxes on the market today.
We offer standard and custom nozzle options to meet any production spec, backed by in-stock availability on our most popular sizes for fast turnaround.
Key Features
PF-9070 Dedicated & Legacy Compatible Design
Engineered with a 0.500 inch inlet to ensure proper fit, precise alignment, and reliable thermal performance on the PF-9070, while offering broad compatibility across many legacy Hot Box systems.
Standard Nozzle Included
The PF-9070 Hot Box comes standard with a 0.500" W × 0.500" D nozzle ready for general-purpose processing right out of the box.
31 Standard Nozzle Sizes (In-Stock)
Choose from 31 standard nozzle sizes kept in-stock for immediate availability. Standard configurations cover depths from 0.250" to 0.500" and widths from 0.078" to 0.500" to keep your line running without delay.
Special Size Nozzles
Need dimensions outside our standard stock? Special size options fit within our design envelope, covering depths from 0.070" to 0.500" and widths from 0.020" to 0.500".
Contact Sales for availability, pricing, and lead time.
Full Custom Nozzle Solutions
For unique application-specific geometry beyond standard or special sizing, we offer fully custom nozzle shapes and sizes tailored to your exact process specs. Contact Engineering to review requirements and confirm feasibility.
System Compatibility & Application Support
PF-9070 Hot Box Compatibility: These nozzles are designed for optimal thermal performance with the PF-9070 Hot Box and accommodate many legacy systems.
Automated Thermal Processing: Pair your nozzle setup with the PF-9060 360 Fuser Pro for programmable rotation and linear catheter bonding.
Application Evaluation: Unsure which nozzle profile fits your tubing? Send your components to our team through our Sample Testing program for complimentary evaluation.
